Marine Gyrocompasses
Leading Exporters, Wholesaler, Trader, Importer and Retailer of Alphatron Gyrocompass, Raytheon Anschutz Standard 22 Gyrocompass, Simrad GC-80 / 85 Gyrocompass and Yokogawa CMZ-900 Gyrocompass from Bhavnagar.
| Business Type | Exporter, Supplier, Trader, Importer |
| Type | Gyro Compass |
| Size | 288x240x329mm |
| Frequency | 50 Hz |
| Weight | 12.5kg |

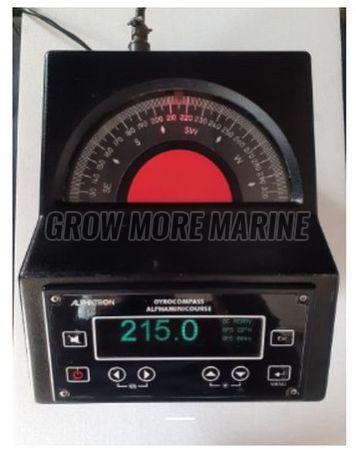

| Brand Name | Alphatron |
| Operated Power | 25W |
| Start Up Power | 50W |
| Input Voltage | 24(18-36)V DC |
| Settling Time | <45 Minutes |
| Design | Mono-Block |
| Follow-up Rate | 200/sec |
| Shock Resistance | Up To 5G |
| Control Unit Distance | Up To 100 Meters |
Features & Benefits
- Maintenance Free, no annual maintenance
- Fast settling time
| Business Type | Exporter, Supplier, Trader, Importer |
| Certification | ISO 9001:2008 |

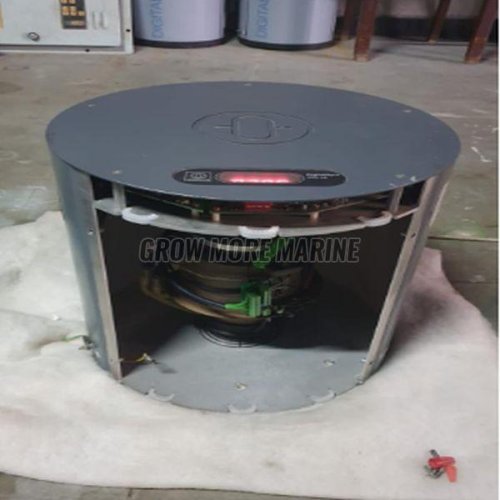

| Brand Name | Raytheon |
| Type | Gyro Compass |
| Usage | Marine Navigation |
| Weight | Approx. 15 Kg |
| Operating Temperature | -15°C To 55°C |
| Accuracy | ±0.5 Degrees |
| Power Supply | 24V DC |
| Dimensions | Standard Dimensions |
| Mounting | Bulkhead Mount |
| Interface | NMEA 0183 |
| Business Type | Exporter, Supplier, Trader, Importer |
| Brand Name | Simrad |
| Display Type | Digital |
| Specialities | Compact, Maintenance Free Gyro,30k Hour Calculated MTTF (>70k Observed),Expanded,And Dual Control Versions,HSC Compliant (GC85),NMEA/IEC,24V Step,And Analog ROT Outputs,No Required Annual Servicing |
| Warranty | 1 Year |
| Voltage | 24V |
| Setting Time | 3 Hours |
| Minimum Range | 25 m |
| Model | GC80/85 MK2 |

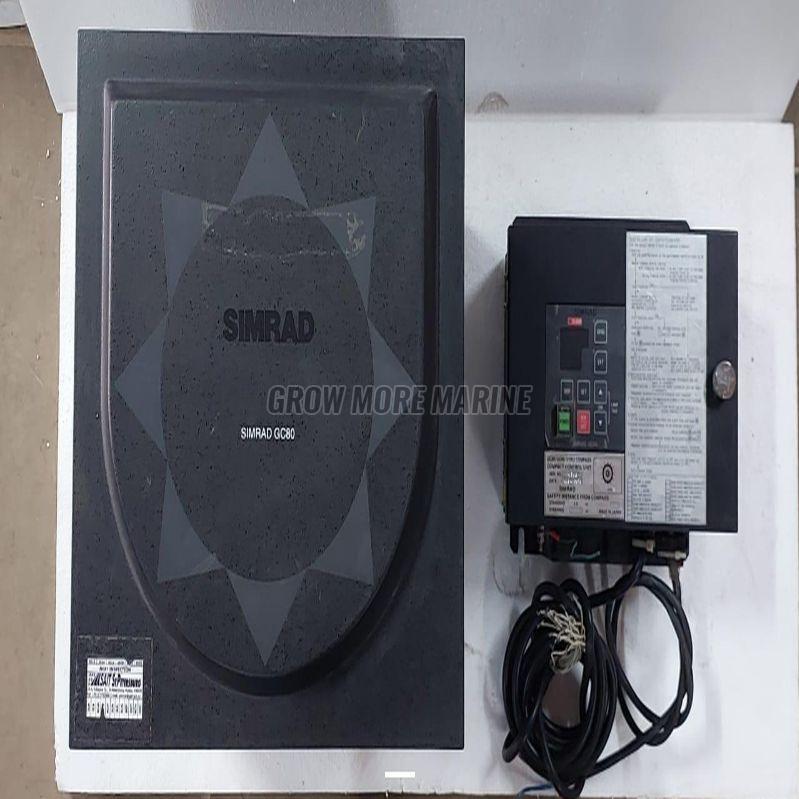

Simrad
Simrad GC80/85 Gyro Compass MK2 are fully IMO approved for standard and High Speed Craft ; with options for Dual and Expanded gyro compass system configuration. Employing the newest technology enables the highest possible accuracy, stability, and assuring effective operations under the most harsh conditions, with is fully sealed sensitive element. The Simrad GC80 gyro compass is the ideal solution for the advanced DP system needed in offshore industry and other similar applications.
IMO approved for both standard vessels and high speed craft, the simple and quick installation and set-up, and the fact that there is no annual servicing required, makes Simrad gyro systems the best solution for any 24/7 operator.
Gyro Compass GC80 System Flexibility
Wide range of control units enable unique configuration for new or retrofit installation. Interfaces are easily expanded to provide signals for all vessel applications. The distribution of power and heading signals from the control units allows for practical installation and easy retrofit.
Features
- 30k hour calculated MTTF (>70k observed)
- Compact, Expanded, and Dual control versions
- HSC compliant (GC85)
- NMEA/IEC, 24V Step, and Analog ROT outputs
- No required annual servicing
| Business Type | Exporter, Supplier, Trader, Importer |

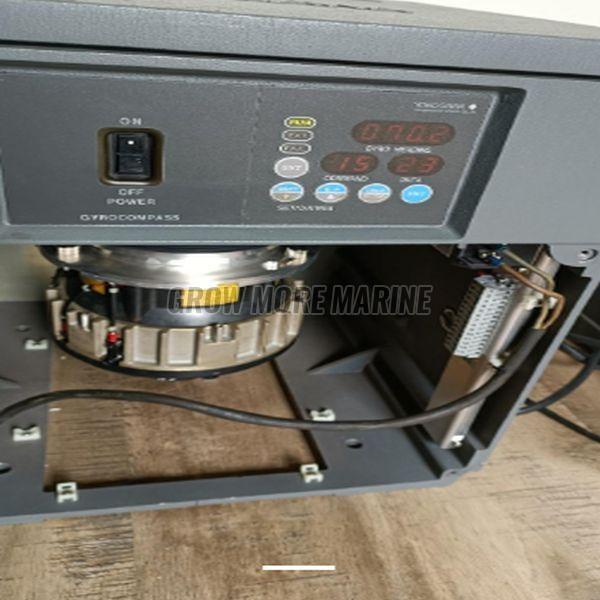

| Brand Name | Yokogawa |
| Display Type | Digital |
| Usage | Marine Ship Use |
| Type | Gyrocompass |
| Minimum Range | 50m |
| Settling Time | Within 5 Hours (usable Accuracy in Approx. 2 Hours) |
| Model | CMZ-900 |
| Static Accuracy | ±0.25° × sec Latitude |
| Heading Outputs | Serial Data, Steppers, Repeater Compasses, Analog Heading And Quadrant, Analog ROT |
