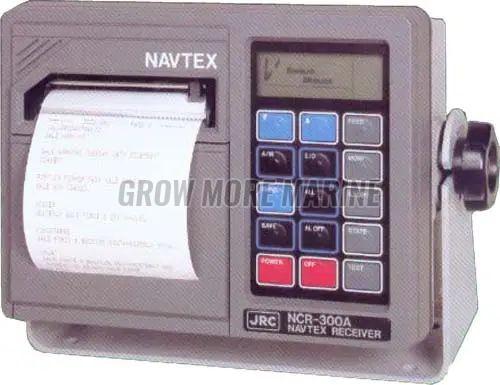

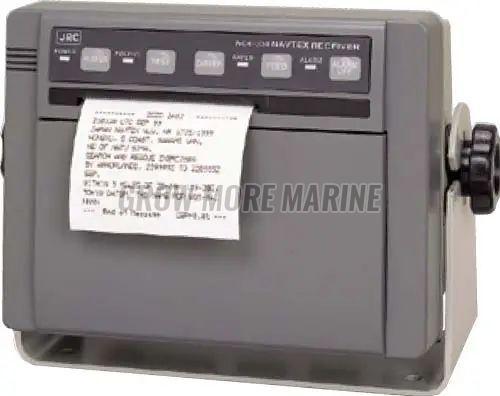

This NAVTEX Receiver is JRC NCR-300A We can supply to world wide and we can give service in all  INDIA Ports. Keep in touch with us.

 ELECTRICAL SPECIFICATIONS

NAVTEX RECEIVER UNIT

Receiver

\\n
• Receiving frequency 518 kHz
\\n
• Receiving scheme STRAIGHT
\\n
• Receiving mode F1B
\\n
• Gain Max. character error ratio: 1% at an antenna input of 1µV
\\n
• BK 12 VDC or 24 VDC
\\n
• External alarm interface Open-collector type
\\n
• Max: 500 mA at 35VDC
\\n
• Recommended product: CGC-300A
\\n
• Max. power consumption: 20 mA
\\n
• Audio output level: 85 dB/m
\\n
• Receiving format 7-bit error detection code based on the NAVTEX
\\n
• broadcasting format
\\n

b. Printer

\\n
• Total characters/line 35 or 40
\\n
• Out-of-paper warning Alarm buzzer
\\n
• Operating panel lamp blinking
\\n
• Red end-of-paper line marks on printer paper (the red lines
\\n
• indicate there is one meter or less remaining).
\\n

c. Control switches

\\n
• Power on/off
\\n
• Coast station selection
\\n
• Message type selection
\\n
• Receiver status selection
\\n
• Alarm buzzer manual turn-off
\\n
• Receiver status information printing
\\n
• Brightness control
\\n
• Self-diagnostic tests
\\n
• Paper feeding
\\n

d. Display/indicator unit

\\n
• Power-on indicator
\\n
• Visual alarm on important message receiving
\\n
• Out-of-paper alarm
\\n
• Receiving indicator
\\n

POWER UNIT

\\n
• Input voltage 12 to 24 VDC(Tolerance +30%,-10%)
\\n
• Power consumption (Standby) at 12 VDC: Approx. 4 W
\\n
• (Operating) at 12 VDC: Approx. 6 W (max.)
\\n
• (Standby) at 24 VDC: Approx. 5 W
\\n
• (Operating) at 24 VDC: Approx. 7 W (max.)
\\n

MECHANICAL SPECIFICATION

\\n
•  Minimum and maximum temperature range:
\\n
• Operating: -15 to +55°C
\\n
• Storage: -25 to +75°C
\\n
•  Relative humidity: Up to 95% at 40°C
\\n
• Installation: Wall-mounting, desk-mounting, or ceiling-mountinga
\\n

ELECTRICAL SPECIFICATIONS

NAVTEX RECEIVER UNIT

a. Receiver

\\n
• Receiving frequency 518 kHz
\\n
• Receiving scheme STRAIGHT
\\n
• Receiving mode F1B
\\n
• Gain Max. character error ratio: 1% at an antenna input of 1µV
\\n
• Antenna input Special antenna (NAW-330)
\\n
• BK 12 VDC or 24 VDC
\\n
• External alarm interface Open-collector type
\\n
• Max: 500 mA at 35VDC
\\n
• Recommended product: CGC-300A
\\n
• Max. power consumption: 20 mA
\\n
• Audio output level: 85 dB/m
\\n
• Receiving format 7-bit error detection code based on the NAVTEX
\\n
• broadcasting format
\\n

b. Printer

\\n
• Printing scheme Thermosensitive 7 ´ 6 or 7 ´ 5 dot matrix
\\n
• Total characters/line 35 or 40
\\n
• Printer paper TF50KS-E3, 80 mm ´ 60 mm across ´ 40 m
\\n
• Out-of-paper warning Alarm buzzer
\\n
• Operating panel lamp blinking
\\n
• Red end-of-paper line marks on printer paper (the red lines
\\n
• indicate there is one meter or less remaining).
\\n

c. Control switches

\\n
• Power on/off
\\n
• Coast station selection
\\n
• Message type selection
\\n
• Receiver status selection
\\n
• Alarm buzzer manual turn-off
\\n
• Receiver status information printing
\\n
• Brightness control
\\n
• Self-diagnostic tests
\\n
• Paper feeding
\\n

d. Display/indicator unit

\\n
• Power-on indicator
\\n
• Visual alarm on important message receiving
\\n
• Out-of-paper alarm
\\n
• Receiving indicator
\\n

\\n
• POWER UNIT
\\n

\\n
• Input voltage 12 to 24 VDC(Tolerance +30%,-10%)
\\n
• Power consumption (Standby) at 12 VDC: Approx. 4 W
\\n
• (Operating) at 12 VDC: Approx. 6 W (max.)
\\n
• (Standby) at 24 VDC: Approx. 5 W
\\n
• (Operating) at 24 VDC: Approx. 7 W (max.)
\\n

MECHANICAL SPECIFICATION

\\n
• Minimum and maximum temperature range:
\\n
• Operating: -15 to +55°C
\\n
• Storage: -25 to +75°C
\\n
•  Relative humidity: Up to 95% at 40°C
\\n
•  Dimensions: 246 mm wide´170 mm high´131.5 mm deep
\\n
• (with mounting base)
\\n
• Installation: Wall-mounting, desk-mounting, or ceiling-mounting
\\n
•  Mass: 2.0 kg (with mounting base)
\\n
• NAW-330 ANTENNA
\\n
• Electrical specifications
\\n
• Receiving frequency: 518 kHz
\\n
• Bandwidth: 5 kHz
\\n
• Gain Min. antenna coupler output: 60 dBmV (at an electric field intensity of 60 dBmV/m)
\\n
• Power consumption: 6 mA at 9 VDC
\\n
• Impedance: 50W
\\n

Mechanical specifications

Installation Mountable: on a pole up to 9 cm across using the supplied mounting band.

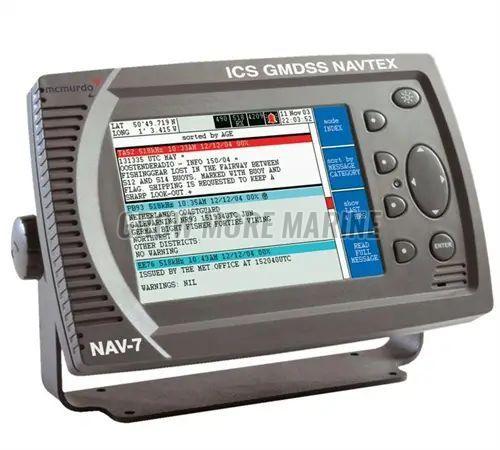

SPECIFICATIONS

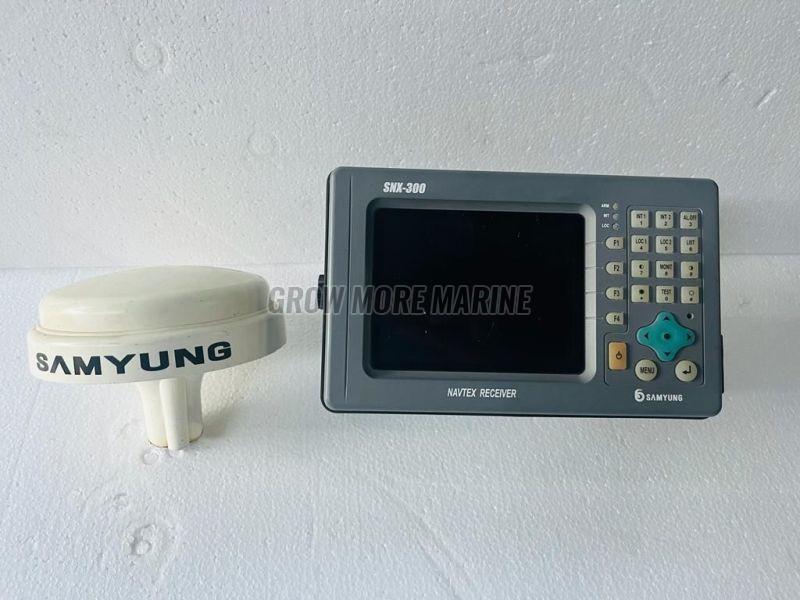

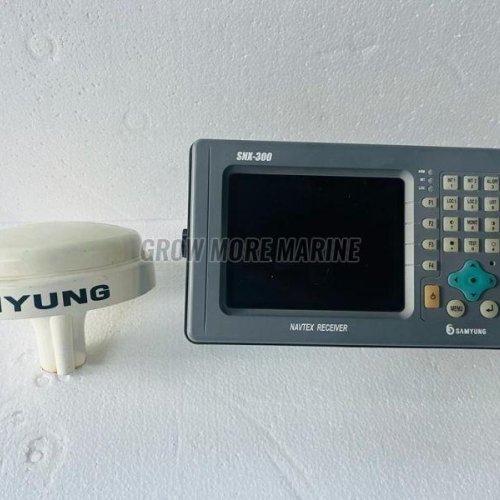

Display: 6 inch, ½ VGA (480 x 320 pixels) Daylight viewable colour STN with adjustable backlight and screensaver

Controls: Backlight/ contrast key, Enter key, four soft menu keys, Tracker pad

Receivers: Receiver A, Frequency 518kHz, Receiver B, Frequency 490kHz, Receiver C, Frequency 4209.5kHz

Connectors: 15 way D-type, Power, Alarm & COM 1 data (2 meter cable supplied with connector pre wired) 9 way D-type, Printer/ COM2 Antenna connector, 50 ohm TNC Ground connector, 1/8” Spare terminal

Data interface:

\\n
• COM 1, RS422 (NMEA 0183)
\\n
• COM 2, RS422 (NMEA 0183)
\\n
• Baud rate, 4800, 38400, 115200.
\\n
• NMEA sentences supported
\\n
• (in priority order) RMC, GLL, ZDA for UTC and NRX, NRQ, NMK, ACK, ALR for NAVTEX functions.
\\n

Mounting: Desk-top or bulkhead (flush panel fixing kit included)

Power: Voltage range 12/24 V DC nominal (10.8 V to 31.2 V) Consumption, with backlight on 8.6 W @ 24 V DC Internal auto resettable fuse @ 1.8 A DC

Technical Standards:

\\n
• IMO Resolutions,
\\n
• MSC.148(77) A.2.1 (17),
\\n
• SOLAS Regulation IV/7.1.4,
\\n
• ITU-R M.540-2, ITU-R M.625-
\\n
• 3, IEC 60945-4, IEC 61162-1,
\\n
• -2, IEC 61162-2, IEC 61097-6
\\n

RECEIVER

\\n
• Receiving Frequency : 518KHz , 490KHz or 4209.5KHz
\\n
• Receiving Modulation : F1B(Narrow Band Direct Printing)
\\n
• Sensitivity : 2uV e.m.f. (50 ohms), 4% error rate or less
\\n
• Antenna input : 50 ohms for NAVTEX Active antenna
\\n

DISPLAY SECTION

\\n
• Type of display : 5.7-inch LCD, 320×240 dots
\\n
• Back-light : For LCD and key board
\\n
• Dimmer control : 10steps adjustable (Selectable from keyboard)
\\n
• Contrast control : 10steps adjustable (Selectable from keyboard)
\\n

POWER SUPPLY

\\n
• Input voltage : Rated Voltage DC 12/24V (10 ~36V)
\\n
• Power consumption : 10 W (at 24 V dc input)
\\n

ACTIVE ANT(SAN-300)

Receiving frequency : 518kHz, 490kHz and 4209.5kHz

Consumption current : 8Vdc 10mA (Typ.)

Impedance : 50 ohms

ENVIRONMENT

Operation temperature : -15°C to +55°C

Storage temperature : -25°C to +75°C

Relative humidity : 95% at 40°C (without dew condensation)

Vibration : IEC 60945
